Digi Connect Sensor+ SkyCloud

New

Powered by Digi SkyCloud: experience unrivaled reliability with Digi Connect Sensor+ and a toolset specially designed for remote monitoring


  • Longer battery life with lightweight cloud connectors
  • Device and sensor data hosted for the duration of your cloud license
  • Rated for industrial environments with wide temperature range, IP66 enclosure and C1D2 certification
  • Configurable read and report intervals with threshold and delta alarms
  • Configurable I/O makes it possible to connect with multiple sensor types
  • Modbus protocol support
  • Configurable power outputs eliminate the need for sensor power supplies
  • Digi SkyCloud remote monitoring and management

Digi Connect® Sensor+ with SkyCloud provides a specially crafted toolset for seamless remote monitoring. Take charge with centralized control, effortless configuration management and easy data visualization.

Reliably gather sensor data with Digi Connect Sensor+ and SkyCloud: our battery-powered solution simplifies data collection from any location and enables analysis with the power of cloud technology.

SkyCloud offers a comprehensive solution for collecting and presenting data from your remote infrastructure and assets. Our advanced technology provides effortless access to your network, field data and related equipment.

Connect Sensor+ goes wherever something flows, and Digi SkyCloud uncovers actionable insights to maintain control of your assets. Fast and simple sensor configuration, data analytics, and the flexibility to customize reports and alerts can all be set up in minutes through our web-based system.

With Digi Connect Sensor+, you can effortlessly configure sensors and gain valuable insights through our powerful analytics platform. Whether you’re involved in water management, stormwater infrastructure, chemical tank telemetry, industrial gas distribution, mining, or environmental regulatory compliance, Connect Sensor+ is the ideal solution for your monitoring and control needs.


How It Works

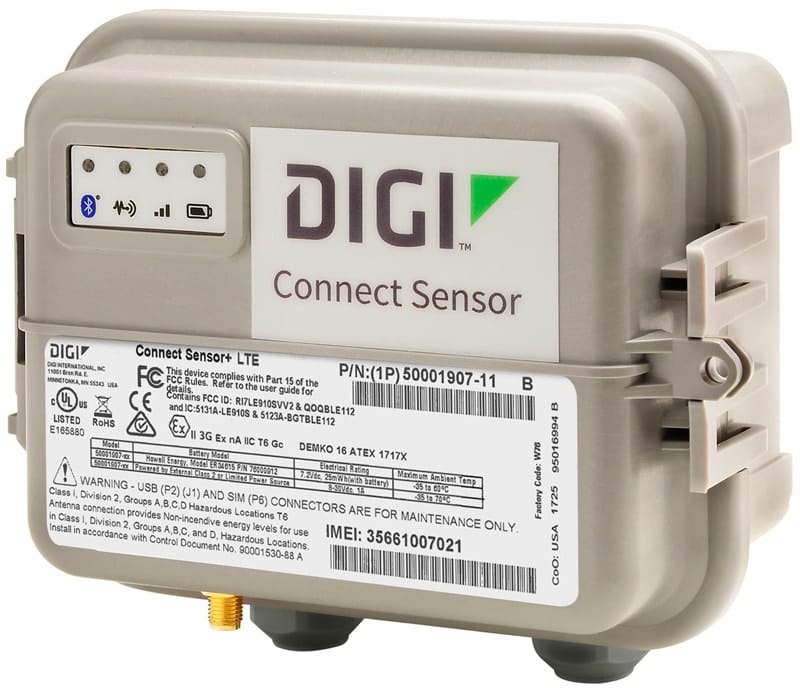

Digi Connect Sensor+ is a battery-powered cellular monitor with multiple I/O for connecting to a wide range of sensors. Designed to work in rugged industrial environments, Connect Sensor+ is the ideal solution for companies looking to add remote monitoring and diagnostics in places where power is not readily available.

digi-skycloud-device-tiles
View updated status of all assets and locations

Deploy Connect Sensor+ in minutes and start creating reliable data from remote infrastructure and assets, making monitoring possible in places that were previously cost prohibitive.

With flexible sensor integration, Connect Sensor+ allows you to adopt a unified approach to data collection, storage, and distribution, providing greater standardization and efficiency.

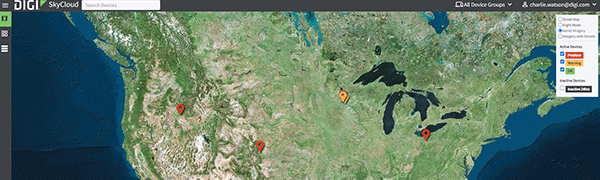

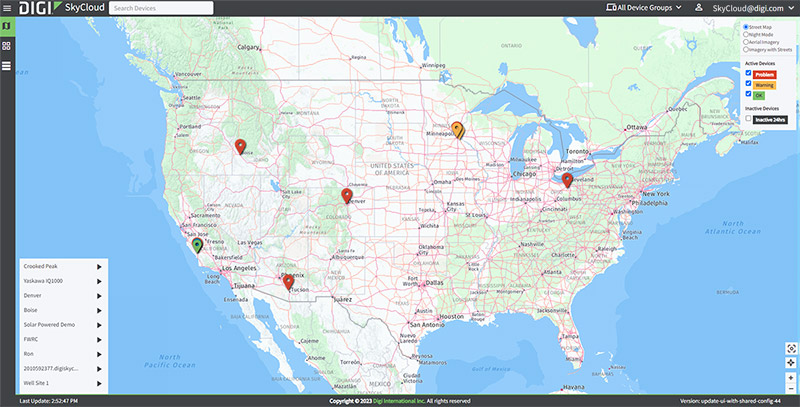

digi-skycloud-map-cities
View and filter assets using detailed map and aerial views

Our monitoring solutions are designed to seamlessly interface with a diverse range of sensors, delivering data wherever you need it. Standard support includes analog data such as current and voltage, widely used protocols like Modbus RTU and ASCII, as well as other OEM-specific ones.

Flexible Sensor Integration

Connect Sensor+ is equipped with four analog inputs that can be customized to function as either voltage or current loop inputs. Each of these inputs comes with a user-enabled power output. This feature allows the Connect Sensor+ to provide configurable DC voltage level output that can power nearly any sensor.

The I/O functionality of the Connect Sensor+ extends beyond standard digital input/output capabilities. It is highly customizable and can be configured to count pulses from mechanical switches and pulsed output meters. The Connect Sensor+ also has the ability to wake up from sleep mode upon detecting a rising and falling edge. Additionally, the digital I/O has the same dedicated DC power output as the analog inputs.

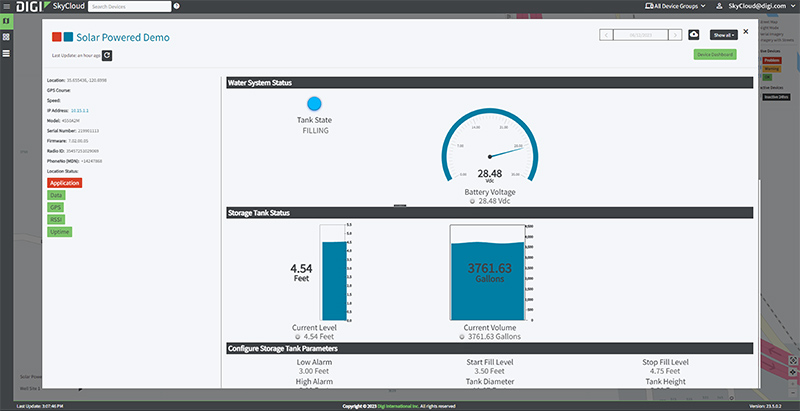

digi-skycloud-solar
Monitor levels with an intuitive interface and detailed reports

Value and Benefits
  • Monitor, analyze, control: Start creating actionable field data in minutes
  • Sense the calm before the storm: our data driven approach enables proactive solutions
  • Don’t miss a single event: Stay informed with real-time alerts
  • Flexible sensor integration: Digi’s “bring your own sensor” approach allows you to adopt a unified strategy for data collection, storage, and distribution, providing greater standardization and efficiency. Our monitoring solutions are designed to seamlessly interface with a diverse range of sensors, delivering data wherever you need it.
  • Effortlessly manage your sensors: Enjoy streamlined web-based logic, processing, and analytics capabilities. Input and manage your sensor settings with ease using our intuitive web-based configuration.
  • Achieve optimal efficiency with SkyCloud: Your data is processed in real-time and delivered to you when it is needed most with tailored alerts, alarms, and reports through various channels, such as text message, cloud, and email. Our advanced alarming logic allows you to make informed decisions and optimize your operations.

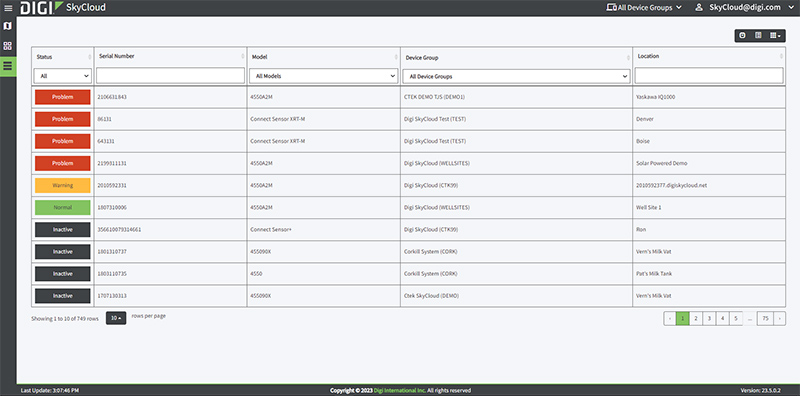

digi-skycloud-device-list-view
Sort and search assets to identify issues and maintain control

Learn more at www.digiskycloud.com

  Digi Connect Sensor+ SkyCloud
WWAN
LTE BANDS Verizon: bands 2, 4, 13

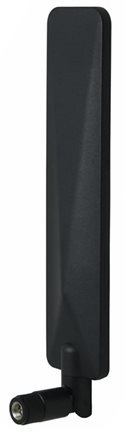

ANTENNA CONNECTOR External SMA
SIM SLOTS 1, standard size
MANAGEMENT
CONFIGURATION AND MANAGEMENT SkyCloud; local USB to serial CLI
POWER (Does not include power draw of external sensors)
EXTERNAL POWER INPUT RANGE 8 VDC to 30 VDC
BATTERY AND BATTERY LIFE 7.2 V, 14.5 Ah, lithium thionyl chloride, non-rechargeable, replaceable; approximately 2 years (at 2 reads/transmits per day)
POWER DRAW, SLEEPING 86.4 uW
POWER DRAW, CONTINUOUS MONITOR 400 mW
POWER DRAW, PEAK TRANSMIT 14.4 watts
SENSOR PROTOCOL SUPPORT
MODBUS Modbus RTU and ASCII, connect to up to 4 sensors
ANALOG I/O
INPUTS 4, configurable as 4/20 mA or 0-10 VDC analog inputs
INPUT VOLTAGE RANGE 0-10.5 V (analog input)
INPUT CURRENT RANGE 4-22 mA (current loop input)
INTERNAL A/D CONVERTER 12 bit
DIGITAL I/O
PORTS 1 digital I/O or pulse counter input
INPUT RANGE 0-0.6 VCD logic low; 2.2 V-30 VDC logic high
MAX INPUT VOLTAGE 30 VDC
MAX PULSE COUNT FREQUENCY 2 kHz
DIGITAL OUTPUT Open collector output, max sink current 450 mA
OUTPUT POWER
PORTS 5
OUTPUT VOLTAGE OPTIONS 3.3, 5, 15, 24 VDC
MAX CURRENT OUTPUT 200 mA
ENVIRONMENTAL
OPERATING TEMPERATURES -35 °C to 70 °C (-31 °F to 158 °F)
STORAGE TEMPERATURE -40 °C to 85 °C (-40 °F to 185 °F)
RELATIVE HUMIDITY 90%
BATTERY DISCHARGE <1%/year if stored at 30 °C (86 °F)
PHYSICAL
DIMENSIONS (L x W x H) 152.4 mm x 108.4 mm, 127 mm including glands, x 74.6 mm (6 in x 4.27 in, 5 in including glands, x 2.94 in)
WEIGHTS 264 g (0.58 lb)
LEDS INDICATORS Battery, cellular, sensor and Bluetooth®
ENCLOSURE Lexan/IP66
REGULATORY APPROVALS
SAFETY UL 60950-1, CAN/CSA C22.2 No. 60950-1-01, IEC 60950-1:2005 (Second Edition); Am1:2009 + Am2:2013, EN 60950-1:2006 / A11:2009 / A1:2010 / A12:2011 / A2:2013 and EN 60950-22:2006;
Class 1, Division II, groups A,B,C,D; ANSI/ISA 12.12.01:2015,CAN/CSA C22.2 No 213-15, 1st Ed
ATEX EN 60079-0:2012+A11:2013, EN 60079-15:2010, eII 3 G Ex nA nC IIC T6 Gc
EMISSIONS FCC part 15 Subpart B class B, EN 55022: 2010/AC: 2011 class B, IECS-003 Issue 5: 2012 class B
IMMUNITY EN 55024:2010
WARRANTY
PRODUCT WARRANTY 3-year

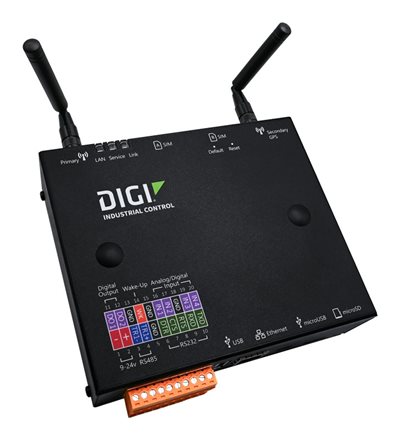

Customer Testimonial - The Versatile, Rugged Digi Connect Sensor+ Customer Testimonial - The Versatile, Rugged Digi Connect Sensor+ One of the key reasons customers choose Digi Connect® Sensor+ is ease of integration with other systems, and the range of... WATCH VIDEO A Long-time Digi Customer Tells Why He Chooses Digi A Long-time Digi Customer Tells Why He Chooses Digi When you’re considering a vendor for critical infrastructure and industrial monitoring and control solutions, it’s important to... WATCH VIDEO Digi Connect Sensor+ at Work in the Field Digi Connect Sensor+ at Work in the Field Digi Connect® Sensor+ is deployed in a wide range of use cases. In this video you can hear Stephen Orton, Superintendent of... WATCH VIDEO Water Monitoring and Control with Digi Z45 and Digi Connect Sensor+ Water Monitoring and Control with Digi Z45 and Digi Connect Sensor+ With water monitoring and control, fast and reliable automation and remote data insights are key. Digi has the complete... WATCH VIDEO 5 Ways to Use Digi Connect Sensor+ 5 Ways to Use Digi Connect Sensor+ Digi Connect Sensor+ with SkyCloud is a powerful combination for monitoring and managing various aspects of industrial and environmental operations. VIEW PDF Digi's 2023 GAWP Water Conference Highlights Digi's 2023 GAWP Water Conference Highlights In case you missed Digi at the 2023 Georgia Association of Water Professionals annual conference, we’ve got you covered... WATCH VIDEO Water Management with Digi Connect Sensor+ and SkyCloud Water Management with Digi Connect Sensor+ and SkyCloud Water is an essential resource that plays a critical role in our planet's well-being. In today's world, effective management of... WATCH VIDEO Digi Connect Sensor+ SkyCloud Digi Connect Sensor+ SkyCloud Powered by Digi SkyCloud: experience unrivaled reliability with Digi Connect Sensor+ and a toolset specially designed for remote monitoring VIEW PDF Press Release Digi International Introduces Bold New Features to SkyCloud for Enhanced Industrial Monitoring and Control Solutions SkyCloud Poised to Unleash Unrivaled Efficiency and Intelligence READ PRESS RELEASE
