Digi XCTU

Next Generation Configuration Platform for XBee/RF Solutions


  • XCTU is a free, multi-platform application compatible with Windows, MacOS and Linux

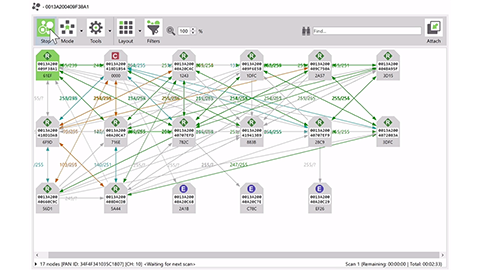

  • Graphical Network View for simple wireless network configuration and architecture
  • API Frame Builder is a simple development tool for quickly building XBee API frames
  • Firmware Release Notes Viewer allows users to explore and read firmware release notes

What is XCTU?

Digi XCTU is a free multi-platform application designed to enable developers to interact with Digi RF modules through a simple-to-use graphical interface. It includes new tools that make it easy to set-up, configure and test XBee® RF modules.

Digi XCTU includes all of the tools a developer needs to quickly get up and running with XBee. Unique features like graphical network view, which graphically represents the XBee network along with the signal strength of each connection, and the XBee API frame builder, which intuitively helps to build and interpret API frames for XBees being used in API mode, combine to make development on the XBee platform easier than ever.

Other highlights of XCTU include the following features:

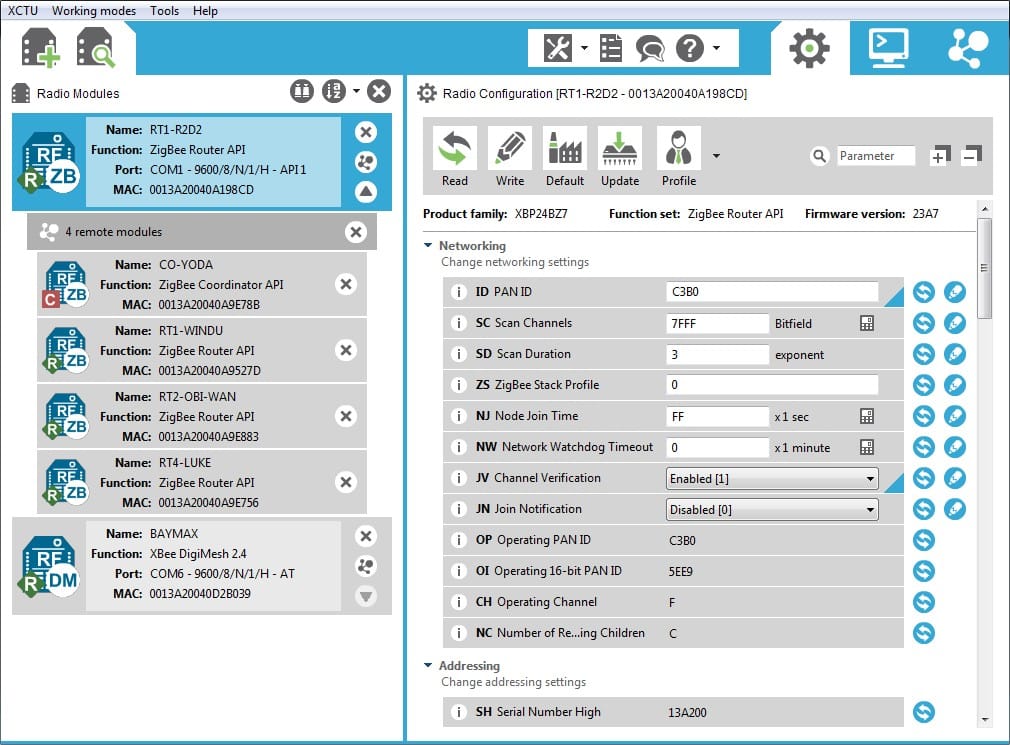

  • You can manage and configure multiple RF devices, even remotely (over-the-air) connected devices.
  • The firmware update process seamlessly restores your module settings, automatically handling mode and baud rate changes.
  • Two specific API and AT consoles, have been designed from scratch to communicate with your radio devices.
  • You can now save your console sessions and load them in a different PC running XCTU.
  • XCTU includes a set of embedded tools that can be executed without having any RF module connected:
    • Frames generator: Easily generate any kind of API frame to save its value.
    • Frames interpreter: Decode an API frame and see its specific frame values.
    • Recovery: Recover radio modules which have damaged firmware or are in programming mode.
    • Load console session: Load a console session saved in any PC running XCTU.

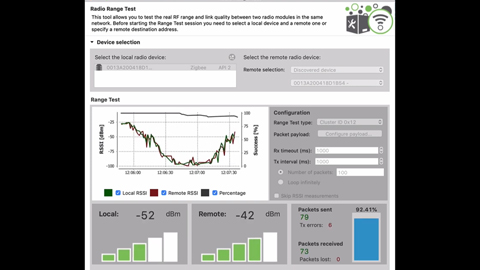

    • Range test: Perform a range test between 2 radio modules of the same network.
    • Firmware explorer: Navigate through XCTU's firmware library.
  • An update process allows you to automatically update the application itself and the radio firmware library without needing to download any extra files.
  • XCTU contains complete and comprehensive documentation which can be accessed at any time.
Digi XBee Tools

Develop, Build, Deploy and Manage Your Digi XBee Network

Digi XBee® Tools

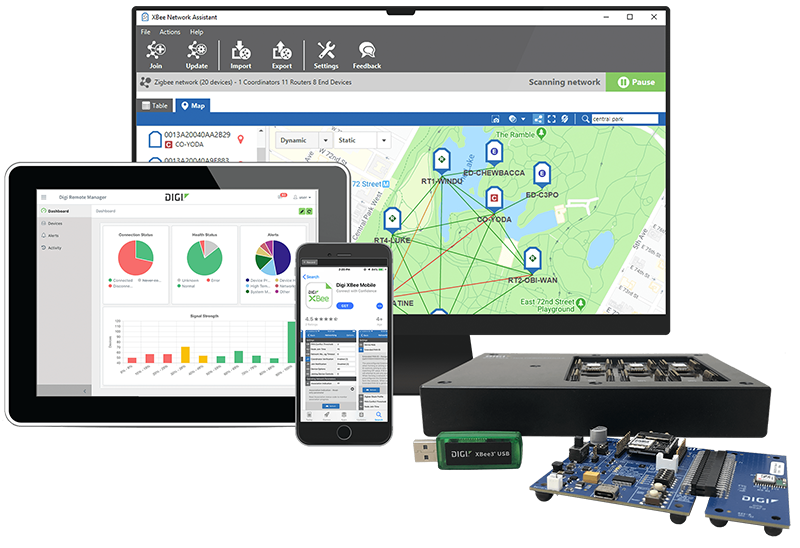

Digi XBee Tools support the complete IoT application lifecycle, from the evaluation, testing and prototyping phase through manufacturing and deployment to long-term network management. See how Digi XBee Tools simplify tasks and help get to market faster.

Discover Digi XBee Tools

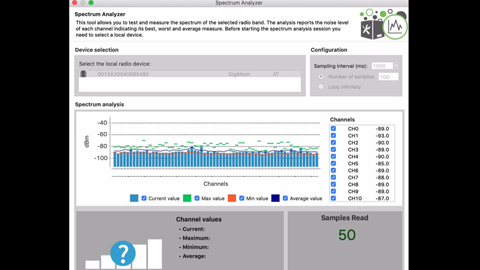

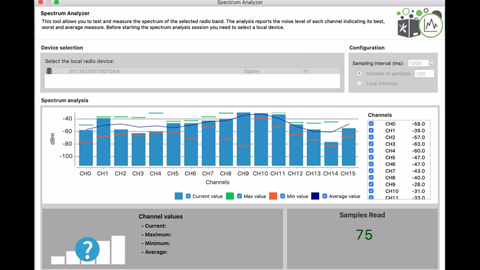

Sicom Electronics Sicom Electronics Helps Smart Cities with Managed Streetlights, Saving Money and Resources In Chile, a country that imports fossil fuels and relies heavily on hydroelectric dams, energy conservation matters. Sicom is... READ STORY The Sky's the Limit for McGill University's Rocket Team The McGill University rocket team leveraged the Digi XTend 900 Mhz Radio for their avionics communications aboard an 11-foot... READ STORY IoT Development with Wireless Communications: Getting Started IoT Development with Wireless Communications: Getting Started The enormously fast-moving field of IoT (Internet of Things) offers a growing selection of supporting components and... READ BLOG 900 MHz: Digi XCTU Spectrum Analyzer for 900 MHz Modules 900 MHz: Digi XCTU Spectrum Analyzer for 900 MHz Modules The spectrum analysis tool in Digi XCTU measures and displays the spectrum of a selected radio band, allowing you to evaluate... WATCH VIDEO 2.4 GHz: Digi XCTU Spectrum Analyzer for 2.4 GHz Modules 2.4 GHz: Digi XCTU Spectrum Analyzer for 2.4 GHz Modules The Digi XCTU spectrum analysis tool lets you determine the spectrum of a selected radio band. Once you select a radio and run... WATCH VIDEO Bin Sentry BinSentry Agriculture Monitoring Systems Rely on Digi® XBee Cellular for Low-Power, Low-Cost Communication Agriculture IoT startup develops a connected solution to enable farmers and feed mills to monitor feed inventories, replenish... READ STORY Digi XCTU Range Testing Tool Digi XCTU Range Testing Tool Digi XCTU provides a complete set of tools for configuring and testing Digi XBee device networks. Use the range test tool to... WATCH VIDEO Digi XCTU Throughput Tool Digi XCTU Throughput Tool The Digi XCTU Throughput Tool lets you directly measure the communications rate between any two Digi XBee multi-point or mesh... WATCH VIDEO Digi XBee Tools Datasheet Digi XBee Tools Datasheet Simplifying tasks throughout the product lifecycle VIEW PDF Digi XCTU Live Network Mapping Tool Digi XCTU Live Network Mapping Tool This video demonstrates the process of discovering all Digi XBee Zigbee devices on the network. WATCH VIDEO bioFeeder Biofeeder Helps Shrimp Farmers to Automate Feeding Schedules In the shrimp farming business, everything affects shrimp health, from the amount you feed the shrimp to the frequency... READ STORY
